以太网路参数

Operating  Mode

Store and  Forward, L2 wire-speed/non-blocking switching engine

MAC  addresses

8K

Packet  Buffer

4 Mbits

Jumbo  frame

9K

电口参数

Speed

10/100/1000  Mbps

MDI/MDIX  Auto-crossover

Support  straight or cross wired cables

Auto-negotiation/Duplex

10/100/1000  Mbps speed auto-negotiation; Full & Half Duplex

Ethernet  Port Protection

1.5KV  VRMS 1minute(Hipot), 2KV surge immunity on RJ45 Copper ports

光口参数

Port  Types supported

100/1000  Base SFP Slot

Fiber  port connector

LC/RJ45  connector for fiber ports

Optimal  fiber cable

Typical  50 or 62.5/125 μm for multimode (mm)

Typical 8  or 9/125 μm for single mode (sm)

冗余环网协议

I.A.Ring  / I.A. Chain

Link Loss  Recovery < 20ms@250pcs

Network  Topology Optimize Functions

Ring  Coupling, Multiple-Ring, Dual-Homing

Spanning  Tree Protocol

IEEE  802.1D/1w/1s, STP/RSTP/MSTP

Port  Trunk / LACP

Static  Trunk or LACP (Link Aggregation Control Protocol)

网路协议与网路规划

Flow  Control

IEEE  802.3x (Full Duplex) and Back-Pressure (Half Duplex)

Max VLANs

256

VLAN  Types

Port-Based  VLAN, Private VLAN, MAC-Based VLAN

IEEE  802.1Q tag-based VLAN, IP Subnet-Based VLAN, Voice VLAN

IEEE  802.1ad Double Tagging (QinQ), Protocol-Based VLAN, VCL

Multicast  protocols

IGMP v1,  v2, V3, up to 255 multicast groups

IGMP  snooping, querying, MLD Snooping, GVRP

Immediate  leave and leave proxy, Throttling and filtering

LLDP

IEEE  802.1ab LLDP / LLDP-MED

频宽管理与网口优先等级规划

Priority

IEEE  802.1p QoS, Ingress / Egress, QCL

Number of  queues per port

8

Scheduling  schemes

SPQ, WRR,  SPQ+WRR

Traffic  Shaper

Port-based  shaping

安全性功能

Port  Security

IP and  MAC-based Access Control/Filter, Auth User / Privilege Level Control

IEEE  802.1X Authentication Network Access Control / RADIUS / TACACS+ Server

Storm  Control

Multicast  / Broadcast / Flooding Storm Control / Port Access Control / Limiters

网路管理功能

User  Management Interfaces

Cisco-Like  CLI (Command Line Interface)

Web-based  Management, Windows Utility for quick startup

SNMP V1,  V2c, V3  USM, RMON, Trap / Inform /  Retry,

Telnet (5 sessions)

Management  Security

HTTPs,  SSH, Access Management, Loop Protection

RADIUS  Client for Management

Upgrade  & Restore

TFTP for  Configuration Import / Export

TFTP for  Firmware Upgrade

Diagnostic

Syslog,  Level Info / Warning / Error, Detailed Syslog

Port  Mirror, Per VLAN mirroring, CPU Load Monitor, Traffic Counter

VeriPHY  Ethernet Cable Diagnostics, ICMP Ping

MIBs

RFC  1757RMON 1, 2, 3, 9; RFC 2674 Q-Bridge MIB

RFC 1213  MIB II; RFC 1493 Bridge MIB; RFC 2233 IF MIB

DHCP

Client  Mode, Server Mode, Relay Mode, Snooping, Option 82

NTP/SNTP

YES

System  Status

Device  info/status; Ethernet port status

Green  Ethernet

Port  Power Savings

Layer 4  Security

Access  Control List

电源输入参数

Power  Input

Redundant  Power Input, Removable Terminal Block

Input  Voltage Range

12-58 VDC

Reverse  power protection

YES

Transient  protection

> 15,  000 Watts peak

Power  Consumption

IS-DG510  11.6 Watt, IS-DG510-2F 12.5Watt, IS-DG510-4F 13.9 Watt

指示灯

Power  status indication

Power  Input status

Ethernet  port indication

Link  & speed

环境参数

Operating  Temperature

-40~75ºC (Cold  startup at -40ºC)

Storage  Temperature

-40~85ºC

Humidity

5~95%  (Non-Condensing)

Vibration,  shock, free fall

IEC-60068-6,  -27, -32

Certification  Compliance

CE, FCC

Electrical  safety

CE

EMC

FCC Part  15, CISPR 22 (EN55022) Class A

IEC-61000-4-2,  -3, -4, -5, -6 (Level 3)

RoHS  & WEEE

RoHS (Pb  free) and WEEE Compliant

MTBF

>25  years

外观与保护

Protection

IP30

Dimension

154mm x  65mm x 108mm(LxWxD)

Weight

1.2 kg

Installation

Din-Rail  Mount, Wall mount

Relay  Output

1A, 24V,  Normal Open

型号

产品描述

10/100/1000Mb TX

100/1000Mb FX

IS-DG510

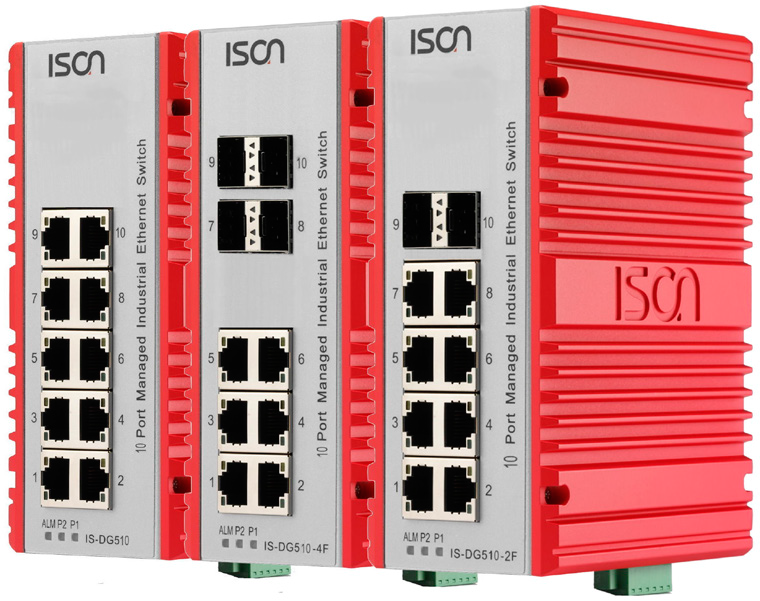

Industrial  10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

10

0

IS-DG510-2F

Industrial  10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

8

2

IS-DG510-4F

Industrial  10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

6

4
